Nissan Pathfinder: Memory seat

Basic Information

The memory seat system has three features:

• Memory storage function (Key-link)
• Memory storage function (Switch)
• Entry/exit function

NOTE: The steering column memory feature is only equipped if your vehicle is fitted with automatic operation.

Key-link, when enabled, automatically retains the driver's last seat, automatic steering wheel, and outside mirror positions for that specific key when the ignition is positioned from ON to OFF.

Each memory switch button (1 or 2) on the driver's door can also store one additional position which is independent of the key-linked position.

Memory storage function (key-link)

Basic Information

Use the following process to setup key-link:

1. Unlock the vehicle with the desired Intelligent Key while the ignition is OFF.

2. Place the ignition in the ON position or start the engine.

3. Within the settings menu of the touchscreen display, select "Edit User" and then "Synch Profile with Intelligent Key".

4. Turn "Synch Profile with Intelligent Key" ON. The ON button will light up.

5. Within the settings menu of the touchscreen display, select "Edit User" and then "User Profiles".

6. Create a personal profile and make sure the correct key number is selected with the arrow.

7. Set the desired seat, steering and mirror positions.

8. Place the ignition switch in the OFF position and lock the vehicle with the Intelligent Key.

Once Step 8 is completed, every time the vehicle is unlocked using the Intelligent Key and the ignition is placed in the ON position, the memory positions will be recalled.

For additional information, see the "NissanConnect Owner's Manual.

Follow the same procedure if you want to link the 2nd, 3rd or 4th Intelligent Key.

NOTE:

• If new memory positions are set prior to turning the ignition from ON to OFF, the previously linked memory positions for the respective key will be overwritten by new positions.
• Please make sure only one Intelligent Key is in the vehicle when setting memory to Intelligent Key. If more than one key is in the vehicle wrong key may be selected.

Recalling Intelligent Key memory positions

If the "Key-Linked Settings" (if so equipped) are enabled in the vehicle information display for that particular key, every time you enter the vehicle the driver's seat, automatic steering wheel, and outside mirrors will automatically move to the driver's last position of the respective Intelligent Key.

NOTE: The key-linked memory positions can be different from the positions stored in the memory switch (1 or 2).

Memory storage function (switch)

Basic Information

Two positions for the driver's seat, steering wheel and outside mirrors can be stored in the memory seat system. Follow these procedures to use the memory system.

1. Place the ignition in the ON or ACC position (the vehicle should be stopped while setting the memory).

2. Adjust the driver's seat, steering wheel and outside mirrors to the desired positions by manually operating each adjusting switch.

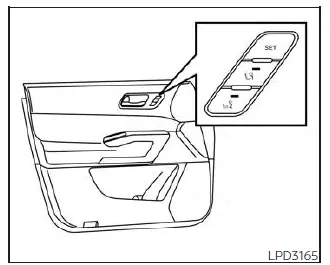

3. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2).

4. The indicator light for the pushed memory switch will come on and stay on for approximately 5 seconds.

5. The chime will sound if the memory has been stored.

NOTE: If a new memory position is stored in the same memory switch, the previous memory position will be overwritten by the new stored position.

Confirming memory storage

• Push the SET switch.
• If a memory position has been stored in the switch (1 or 2) then the indicator light for the respective switch will stay on for approximately 5 seconds.

Entry/exit function

Basic Information

This system is designed so that the driver's seat and steering wheel will automatically move when the shift position is in the P (Park) position. This allows the driver to easily get in and out of the driver's seat.

The driver's seat will slide backward and the steering wheel will move up:

• When the driver's door is opened with the ignition switch in the OFF position.
• When the ignition switch is changed from ACC to OFF with the driver's door open.

The driver's seat and steering wheel will return to the previous position:

• When the ignition switch is changed from ACC or ON while the shift position is in the P (Park) position.

The entry/exit function can be adjusted or canceled through "Vehicle Settings" in the vehicle information display by performing the following:

• Switch the Exit Seat Slide from on to off.
• Switch the Exit Steering UP from on to off.

Restarting the entry/exit function

If the battery cable is disconnected or if the fuse opens, the stored memory positions may be lost and some of the functions will be restricted.

1. Drive the vehicle over 25 mph (40 km/h).

OR

2. Open and close the driver's door more than two times with the ignition switch in the OFF position.

The entry/exit function should now work properly.

Setting memory function

The position of the following settings can be linked to the Intelligent Key and the memorized settings can be available for each Intelligent Key.

• Climate control system
• Audio system

To use the memory function, set the climate and audio systems to the driver's preferred settings. Lock the doors with the Intelligent Key. Each Intelligent Key may be set with the driver's individual preferences.

To engage the memorized settings, perform the following:

1. Carry the Intelligent Key that is linked to the memorized settings.

2. Unlock the doors by wrapping hand around the capacitive door handle or pressing the button on the Intelligent Key.

3. Place the ignition switch in the ON position.

The settings linked to the Intelligent Key will start.

System operation

The memory seat system will not work or will stop operating under the following conditions:

• When the vehicle speed is above 4 mph (7 km/h).
• When any of the memory switches are pushed while the memory seat system is operating.
• When the switch for the driver's seat and steering wheel is pushed while the memory seat system is operating.
• When the seat has already been moved to the memorized position.
• When no seat position is stored in the memory switch.
• When the shift position is moved from P (Park) position to any other position.
