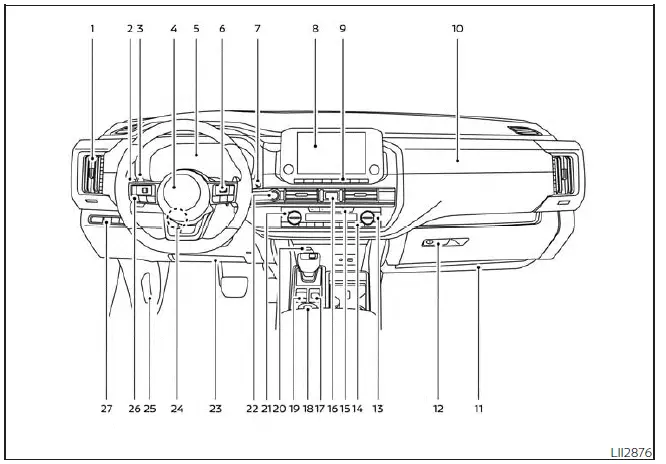

Nissan Pathfinder: Instrument panel

1. Vents
2. Headlight/fog light (if so equipped)/ turn signal switch
3. Paddle shifter
4. Driver supplemental air bag
   Horn
5. Meters and gauges
   Warning and indicator lights
   Vehicle information display
6. Cruise control switches (if so equipped)
   ProPILOT Assist switches (if so equipped)
   Bluetooth Hands-Free Phone System*
7. Wiper and washer switch
   Rear window wiper and washer switch
8. Center display*
   Navigation system* (if so equipped)
9. Audio controls*
10. Front passenger supplemental air bag
11. Front passenger supplemental knee air bag
12. Glove box
13. Passenger heated seat switch (if so equipped)
    Passenger climate-controlled seat switch (if so equipped)
14. Automatic heater and air conditioning controls
15. Heated steering wheel switch (if so equipped)
16. Hazard warning flasher switch
17. Idling stop OFF switch
18. Drive Mode Selector
19. Electronic parking brake
    Automatic brake hold switch
20. Power outlet
21. Driver heated seat switch (if so equipped)
    Driver climate-controlled seat switch (if so equipped)
22. Push-button ignition switch
23. Driver supplemental knee air bag
24. Tilt and telescopic steering wheel control
25. Hood release
26. Control panel and vehicle information display switches
27. Liftgate instrument panel switch (if so equipped)
    Steering Assist switch (if so equipped)
    Instrument brightness control switch
    Head Up Display (HUD) switch (if so equipped)

*: Refer to the separate NissanConnect Owner's Manual.
