Nissan Pathfinder: Heated 2nd row seat switches

WARNING Do not use or allow occupants to use the seat heater if you or the occupants cannot monitor elevated seat temperatures or have an inability to feel pain in body parts that contact the seat. Use of the seat heater by such people could result in serious injury.

CAUTION

• The battery could run down if the seat heater is operated while the engine is not running.
• Do not use the seat heater for extended periods or when no one is using the seat.
• Do not put anything on the seat which insulates heat, such as a blanket, cushion, seat cover, etc. Otherwise, the seat may become overheated.
• Do not place anything hard or heavy on the seat or pierce it with a pin or similar object. This may result in damage to the heater.
• Any liquid spilled on the heated seat should be removed immediately with a dry cloth.
• When cleaning the seat, never use gasoline, benzine, thinner, or any similar materials.
• If any malfunctions are found or the heated seat does not operate, turn the switch off and have the system checked. It is recommended that you visit a NISSAN dealer for this service.

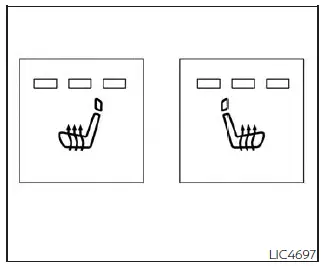

The 2nd row outboard seats are warmed by built-in heaters. The switches are located on the rear of the front center console and can be operated independently of each other.

1. Start the engine.

2. Push the switch, as desired. The indicator light in the switch will illuminate.

The heater is controlled by a thermostat, automatically turning the heater on and off. The indicator light will remain on as long as the switch is on.

3. When the seat is warmed or before you leave the vehicle, be sure to turn the switch off.

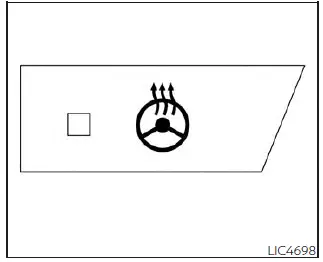

Heated steering wheel switch

Push the heated steering wheel switch to warm the steering wheel after the ignition switch is placed in the ON position. The indicator light will come on.

If the surface temperature of the steering wheel is below 68ºF (20ºC), the system will heat the steering wheel and cycle off and on to maintain a temperature above 68ºF (20ºC). The indicator light will remain on as long as the system is on (approximately 30 minutes).

Push the switch again to turn the heated steering wheel system off manually. The indicator light will go off.

NOTE:

• Once activated, your heated steering wheel will automatically turn on and off to maintain a temperature above 68ºF (20ºC).
• When the temperature of the steering wheel is above 122ºF (50ºC) and the heated steering wheel switch is turned on, the system will not heat the steering wheel. This is not a malfunction.

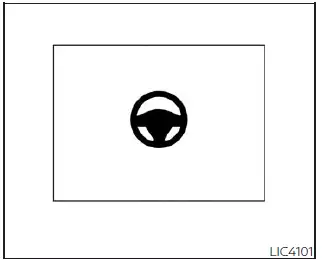

Steering Assist switch (for vehicles with ProPILOT Assist)

The Steering Assist switch is used to enable and disable the Steering Assist system that is activated using the settings menu of the vehicle information display.

The Steering Assist system controls the steering system, when ProPILOT Assist is engaged, to help keep your vehicle near the center of the lane when driving.
