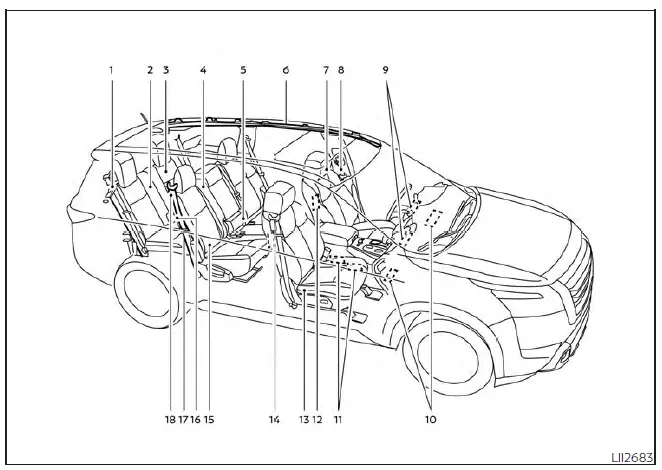

Nissan Pathfinder: Air bags, seat belts and child restraints

1. Seat belt (3rd row outboard seat; driver's side shown; passenger side similar)
2. Folding 3rd row bench
3. Seat belt (3rd row center seat)
4. Folding 2nd row bench (if so equipped)
5. Seat belt (2nd row center seat)
6. Roof-mounted curtain side-impact and rollover supplemental air bag
7. Head restraints/headrests
8. Seat belts with pretensioner(s) and shoulder height adjuster (driver's side shown; front passenger side similar)
9. Supplemental air bags
10. Driver supplemental knee air bag
    Front passenger supplemental knee air bag
11. Occupant classification sensor (weight sensor)
12. Front central seat-mounted side-impact supplemental air bag (if so equipped)
13. Seats
14. Front seat-mounted side-impact supplemental air bag
15. LATCH (Lower Anchors and Tethers for CHildren)
16. 2nd row seat-mounted side-impact supplemental air bag
17. 2nd row seat top tether strap anchor (located on bottom of seatback)
18. 2nd row outboard seat belts with pretensioner( s)

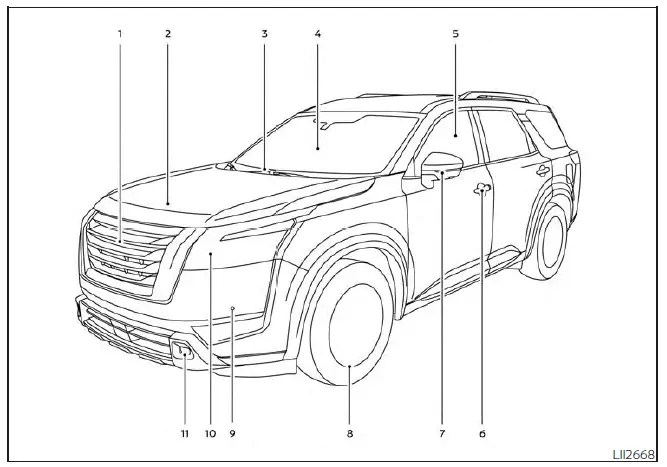

Exterior front

1. Front view camera (if so equipped)
2. Engine hood
3. Wiper and washer switch
4. Windshield-washer fluid
5. Power windows
6. Door locks
   NISSAN Intelligent Key system
   Keys
7. Mirrors
   Side view camera (if so equipped)
8. Tire pressure
   Flat tire
   Tire chains
9. Front sonar sensors (if so equipped)
10. Replacing bulbs
    Headlight and turn signal switch
    LED Daytime Running Lights (DRL) system
11. Fog light switch (if so equipped)

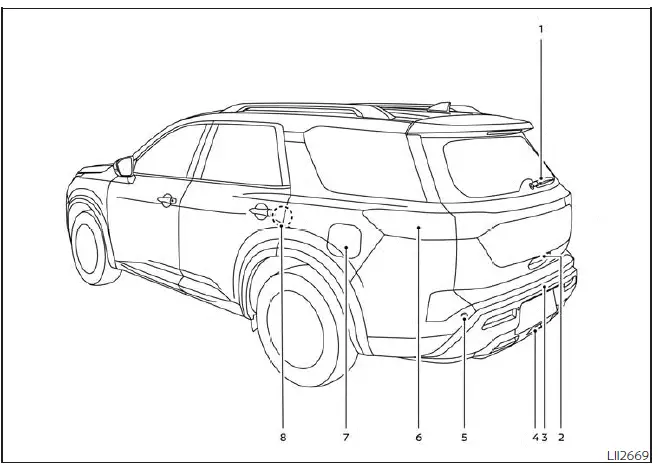

Exterior rear

1. Rear window wiper and washer switch
2. Liftgate release
3. Rearview camera
4. Towing
5. Rear sonar sensors
6. Replacing bulbs
7. Fuel-filler door
   Fuel recommendation
8. Child safety rear door lock

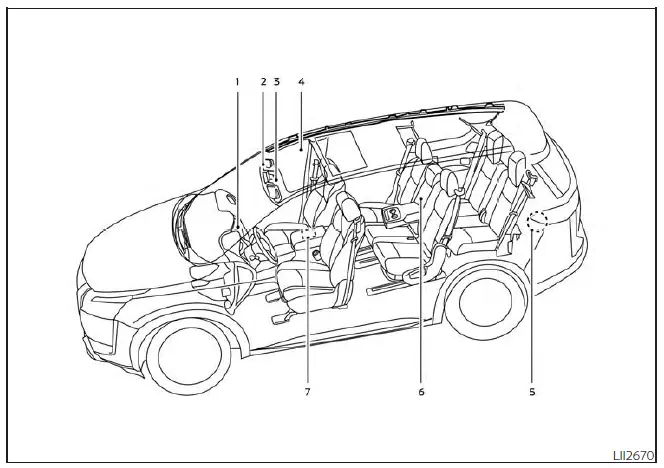

Passenger compartment

1. Glove box
2. Sun visors
3. Map lights
4. Power moonroof (if so equipped)
5. Luggage hooks
6. Cup holders
7. Console box

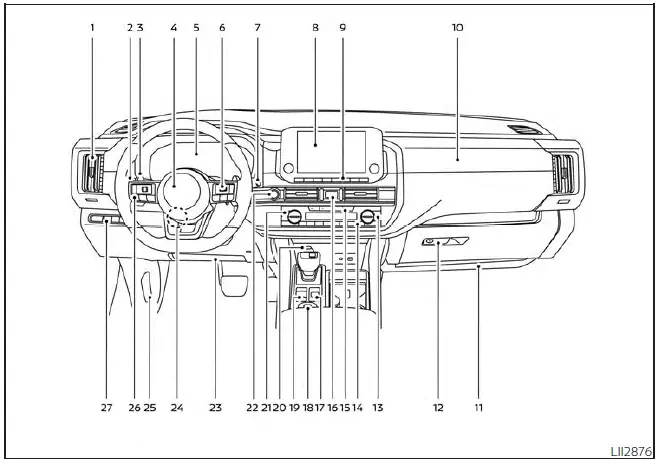

Instrument panel

1. Vents
2. Headlight/fog light (if so equipped)/ turn signal switch
3. Paddle shifter
4. Driver supplemental air bag
   Horn
5. Meters and gauges
   Warning and indicator lights
   Vehicle information display
6. Cruise control switches (if so equipped)
   ProPILOT Assist switches (if so equipped)
   Bluetooth Hands-Free Phone System*
7. Wiper and washer switch
   Rear window wiper and washer switch
8. Center display*
   Navigation system* (if so equipped)
9. Audio controls*
10. Front passenger supplemental air bag
11. Front passenger supplemental knee air bag
12. Glove box
13. Passenger heated seat switch (if so equipped)
    Passenger climate-controlled seat switch (if so equipped)
14. Automatic heater and air conditioning controls
15. Heated steering wheel switch (if so equipped)
16. Hazard warning flasher switch
17. Idling stop OFF switch
18. Drive Mode Selector
19. Electronic parking brake
    Automatic brake hold switch
20. Power outlet
21. Driver heated seat switch (if so equipped)
    Driver climate-controlled seat switch (if so equipped)
22. Push-button ignition switch
23. Driver supplemental knee air bag
24. Tilt and telescopic steering wheel control
25. Hood release
26. Control panel and vehicle information display switches
27. Liftgate instrument panel switch (if so equipped)
    Steering Assist switch (if so equipped)
    Instrument brightness control switch
    Head Up Display (HUD) switch (if so equipped)

*: Refer to the separate NissanConnect Owner's Manual.

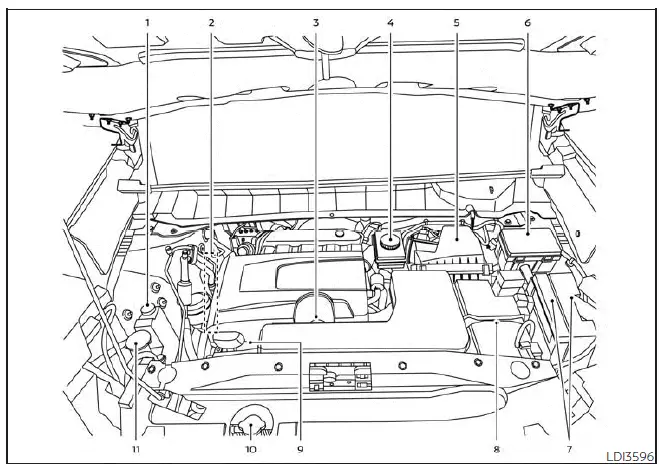

Engine compartment check locations

3.5L 6 cylinder (VQ35DD engine model)

1. Engine coolant reservoir
2. Drive belt location
3. Engine oil filler cap
4. Brake fluid reservoir
5. Air cleaner
6. Fuse box
7. Fuse/Fusible link box
8. Battery
9. Engine oil dipstick
10. Radiator cap
11. Windshield-washer fluid reservoir

NOTE: Your vehicle may not be equipped with an engine cover.
